TECHNICAL INFORMATION

Technology:
LED pulsed light with photodiode array

Optical resolution:
4×4 mm

Vision:
free fall – single / double sides

Version:
2 WAY / 3 WAY

Ejection:
mechanical fingers

Models:
IY-2100 / IY-2060

BROCHURE
PLAYLIST VIDEO
ROI CALCULATOR

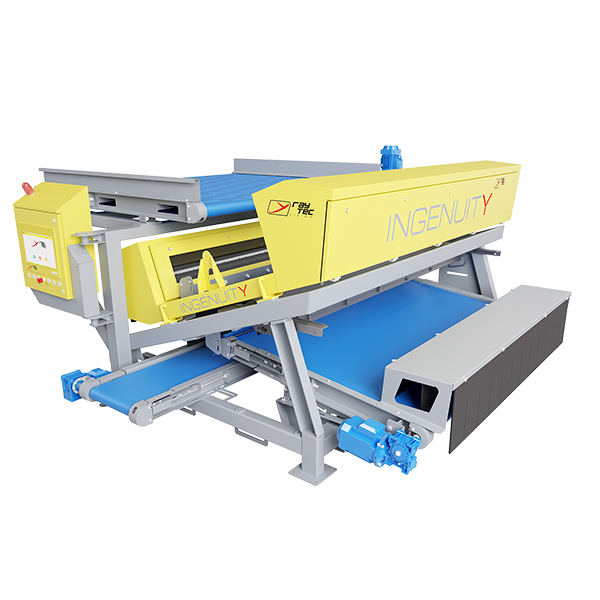

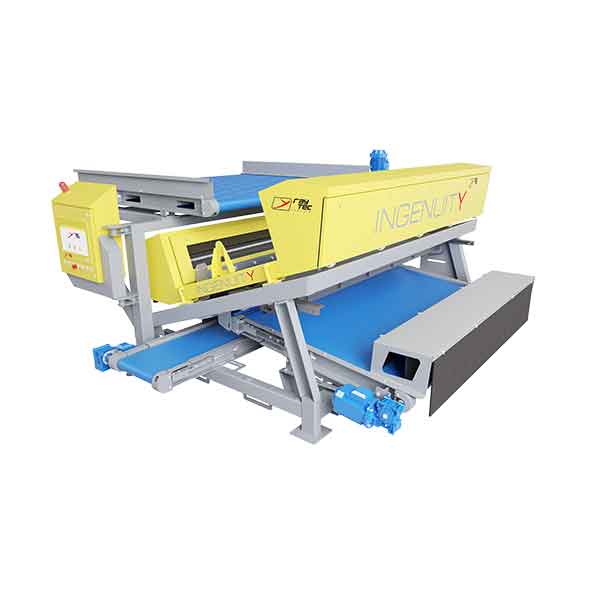

INGENUITY is a double-vision sensor sorter. It is equipped with Visible Color and NIR technology (Near Infra Red). The system detects soil clods, stones, and green potatoes in unwashed potatoes, and for washed potatoes, it identifies also rotten products and color defects.

INGENUITY is available in various configurations, engineered to meet the demands of high-throughput agricultural and industrial processing lines.

The machine is available in a 2WAY and 3WAY configuration, and the ejection system is by mechanical fingers in a special high-resistance and anti-abrasion material.

APPLICATIONS

  • Unwashed potatoes
  • Washed potatoes
  • Carrots
  • Apples
  • Onions
  • Beetroots
The double-vision sorter
for large capacities
WATCH NOW

BENEFITS

High
production
Low
maintenance
Real-time
detection
Automatic
image capture
Constant
selection
Easy inline integration
User-friendly
software
Compact
footprint
TECHNICAL CHARACTERISTICS
Model IY-2060 IY-2100
Sorting channels 60 100
Vision area width (L) 1500 mm (60″) 2500 mm (100″)
Pixel dimension 4×4 mm
Control and diagnostic device Interactive LCD touch-screen color digital panel onboard
Rejection channel width 25 mm (1″)
Rejection type Mechanical fingers
External and/or remote connection Ethernet and/or modem
Conveyor speed 50-70 m/min
