Dryce : the optical sorter for frozen and dried by Raytec Vision

Optical sorter for dried and frozen foods

INFORMAZIONI TECNICHE

Technology:
• LED pulsed light with CCD Camera

Optical resolution:
• 0,3×0,3 mm

Vision:
• on belt – top view (double)

Versions:
• 2 WAY / 3 WAY

Models:
• DR-602 / DR-1202

APPLICATIONS

Frozen eggplant
Frozen corn
Frozen green beans
Frozen peas
Dry tomatoes
Half pears
Mussels
Sweets
Diced potatoes
Cauliflower rice
Half peaches
Frozen okra

Chestnuts
Chewing gum
Frozen potato chips
Frozen Brussels sprouts
Diced onions
Edamame
Walnuts
Sugar-coated candies
Pistachios
Frozen spinach cubes
Frozen zucchini
Frozen artichokes
Frozen red currants

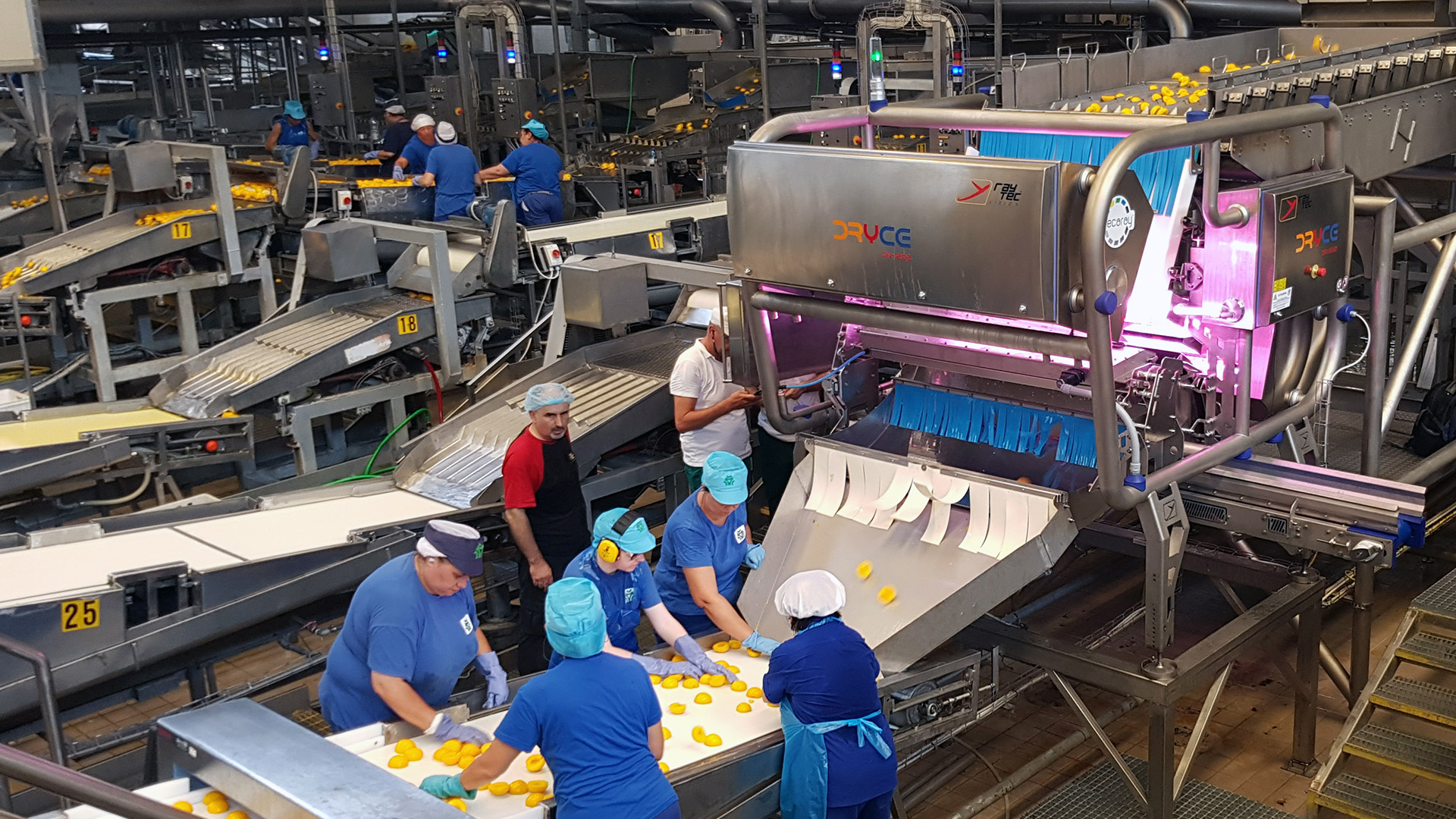

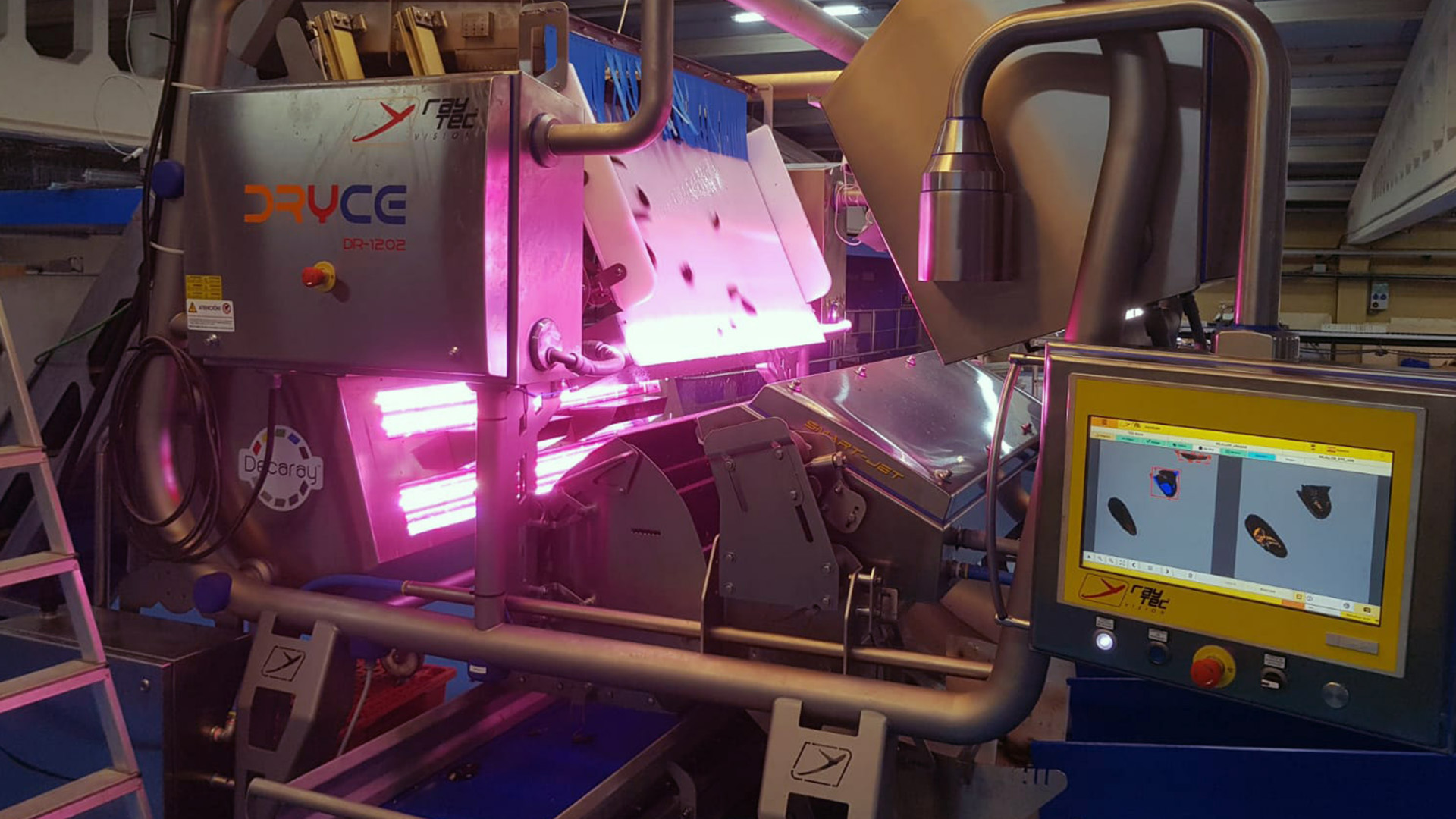

Dryce is an optical sorting machine with high resolution cameras that examine the product using the “free fall double side view” system which analyses 100% of the surface of each product.
The system is specially designed to sort Dried and Frozen food products.

Dryce can dispose of colour defects, rotten produce and foreign bodies also if they are of the same colour as the good product.
A vibratory shaker built in the machine conveys the product to a vertical chute ensuring a consistent trajectory.

Dryce is available in two versions:

DR-602:

600 mm vision width;
96 ejection valves.

DR-1202:

1200 mm vision width;
192 ejection valves.

Technology

- NIR technology can detect the presence of rotten and foreign bodies.
- Visible Color analysis allows colour defects to be detected, such as green products, yellowing, etc.
- The Chlorophyll analysis allows very accurate detection of foreign bodies in products with high chlorophyll content (peas, green beans).
- Translucency analysis enables detection of stones in the dehydrated fruit and contaminants with a different density from the good product.
- The Shape function calculates nine mathematical parameters for each inspected object. Those parameters are representative of geometric characteristics of the object such as eccentricity, compactness or the presence of protuberance.
- The Blob function rejects only the groups of pixels (blobs) whose sum of weights is higher than a value defined in the sorting recipe.
- The Stem function allows the detection and rejection of stalks, stems, wires or any other thin object in the product stream.
- The Glass function enables to detect and reject transparent pieces of glass and plastic.
- The Big Stop allows to control the presence of dangerous foreign bodies. This function enables a series of programmable choices: object calculation allocated in three different classes of dangerousness, automatic image capture of dangerous contaminants, alarm generation (with option to stop the machine).The machine detects statistical data on rejected products for quality analysis of the selected raw material.
- An ethernet connection is available for remote control. The Raymote safe connection is available for internet access. The Raymote Firewall allows to connect automatically to Raytec’s control systems, guaranteeing an efficient, continuous and safe assistance: Raymote has been designed to avoid external hacks.
