The food sorter with artificial intelligence

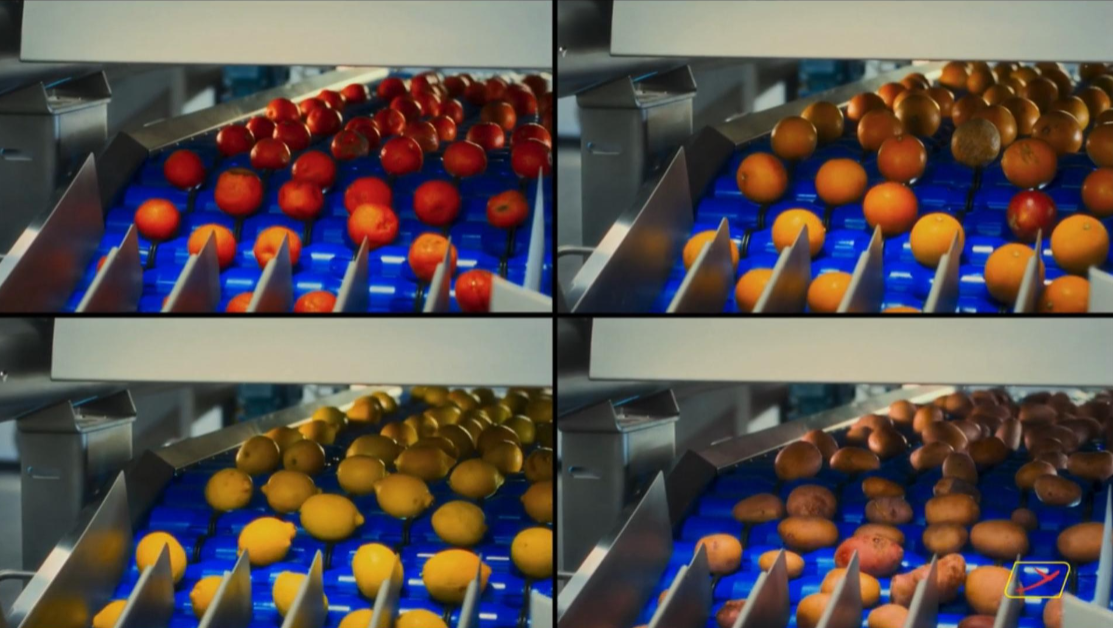

OPPORTUNITY is an optical food sorter which exploits artificial intelligence (Deep Learning) for 360-degree product quality control. Thanks to the roller belt (spin belt) that allows products to rotate and matrix cameras to capture entire frames of the rolling product, the software enables increased product quality, completely replacing manual sorting.
OPPORTUNITY is based on the principle of self-learning and can be adapted to the selection of different types of products. With its compact design and ability to communicate with other machines, Opportunity can be easily placed within processing lines to contribute to complete production automation.
OPPORTUNITY iis capable of performing a real-time “identikit” of each product, on each side. This enables to identify even the slightest defect and presence of necrotic in any part of the tornato.
The great advantage of artificial intelligence, is that the machine is “trained” with the acquisition of many images and easily adapts to the growing needs of quality control.
Opportunity is available in 3 versions
OY-600:
600 mm vision width
OY-1200:
1200 mm vision width
OY-1800:
1800 mm vision width
Benefits
High production capacity
Selection of large quantities of product in little time
Low maintenance
(up to 100% according to the applicaion).
Real-time detection
of qualitative data of raw material analysed
Automatic capture of images
of rejected products and their filing for post-production analysis
Constant selection over time
also over 3 work shifts
Low maintenance costs
User-friendly software
for easy use and programming
Technical characteristics
| Model | OY-600 | OY-1200 | OY-1800 |
|---|---|---|---|
| Capacity | Up to 10 t/h | Up to 20 t/h | Up to 30 t/h |
| Machine length | 3.600 mm | 3.600 mm | 3.600 mm |
| Inspection belt width | 600 mm | 1.200 mm | 1.800 mm |
| Inspection belt speed | 20-45 m/min | 20-45 m/min | 20-45 m/min |
| Pixel size | 0,3x0,3 mm | 0,3x0,3 mm | 0,3x0,3 mm |
| Number of ejection valves | 6 | 12 | 18 |
Information request
Contact us to request information or a free quote
